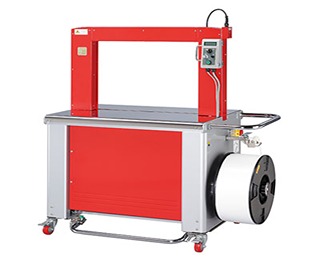

Auto Strapping Machine [TP-702 Mercury]
Description
Mercury TP-702 is an innovative world-class high speed automatic strapping machine. It is suitable for 5 mm, 6 mm, 9 mm, 12 mm, or 15 mm PP strapping. Equipping with all industry’s standard features and creative user friendly designs, Mercury TP-702 offers the most optimal performance, highest speed, easiest maintenance, and the most cost effective solution in its class.
Features
• Robust & compact mechanical strapping head
• High speed up to 65 straps per minute
• Free access to strap guides (patents registered)
• Waist-high auto strap feeding
• Waist-high quick coil change (patents registered)
• Turn able operating control panel
• Auto strap ejector
• Dispenser release switch
• Sensor controlled heater
• Low voltage
• Strap end ejector

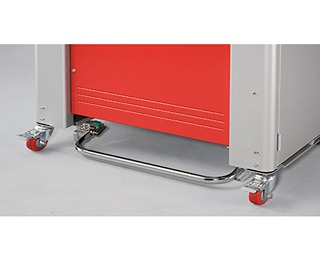

• Front foot bar switch
• Adjustable table height between 820 mm and 920 mm
Specification
| Capacity | Up to 65 cycles/minute (TP-702-59), Up to 60 cycles/minute (TP-702-12), Up to 58 cycles/minute (TP-702-15W) |
| Strap Width | 5 mm, 6 mm, or 9 mm (TP-702-59), 12 mm (TP-702-12), 15 mm (TP-702-15W) |
| Tension Range | 1 to 32 kg (TP-702-59), 1 to 45 kg (TP-702-12, TP-702-15W) |
| Electrical Requirements | 220V, 230V, 50/60Hz 1PH |
